Abstract

This project implements Role-Based Access Control (RBAC) as a Service using Okta to manage user authentication and authorization. It enables secure access to applications by assigning permissions based on user roles, ensuring fine-grained control and compliance. The solution leverages Okta’s API for seamless integration, enhancing security and scalability.

About Our Client

Our client is a prominent provider of cloud-based communications to businesses and consumers who can communicate through any device using cloud-hosted chat, video, voice, and short message service.

We partnered with them to develop:

• An automated solution to deliver on all aspects of RBAC right from employee onboarding to employee off boarding.

• A fine-grained access control approach to set up clearly defined roles, permissions and protocols by implementing the principle of least privilege thereby reducing the risk of granting unwarranted access.

• An auditing and reporting functionality to provide objective insight, optimize operational efficiency, and ensure compliance with standards and regulations.

Business Challenges

Business Needs

Seamless Integration with OKTA and RBAC:

Enable seamless communication between the user interface and OKTA, ensuring accurate privilege cascading through RBAC.

Operational Efficiency:

Reduce administrative overhead by automating user access management and minimizing manual interventions.

Controlled Access Management

Empower managers to monitor, modify, and control team access levels with ease.

Challenges

Role Clarity and Access Mapping:

Maintain role clarity by defining business roles, managing privileges, and conducting periodic access reviews.

Streamlined User Lifecycle Management:

Simplify onboarding, role changes, and offboarding for employees and third-party resources.

Access Synchronization:

Keeping user roles and access levels the same across multiple applications in real time is difficult. Delays or errors can cause mismatched access.

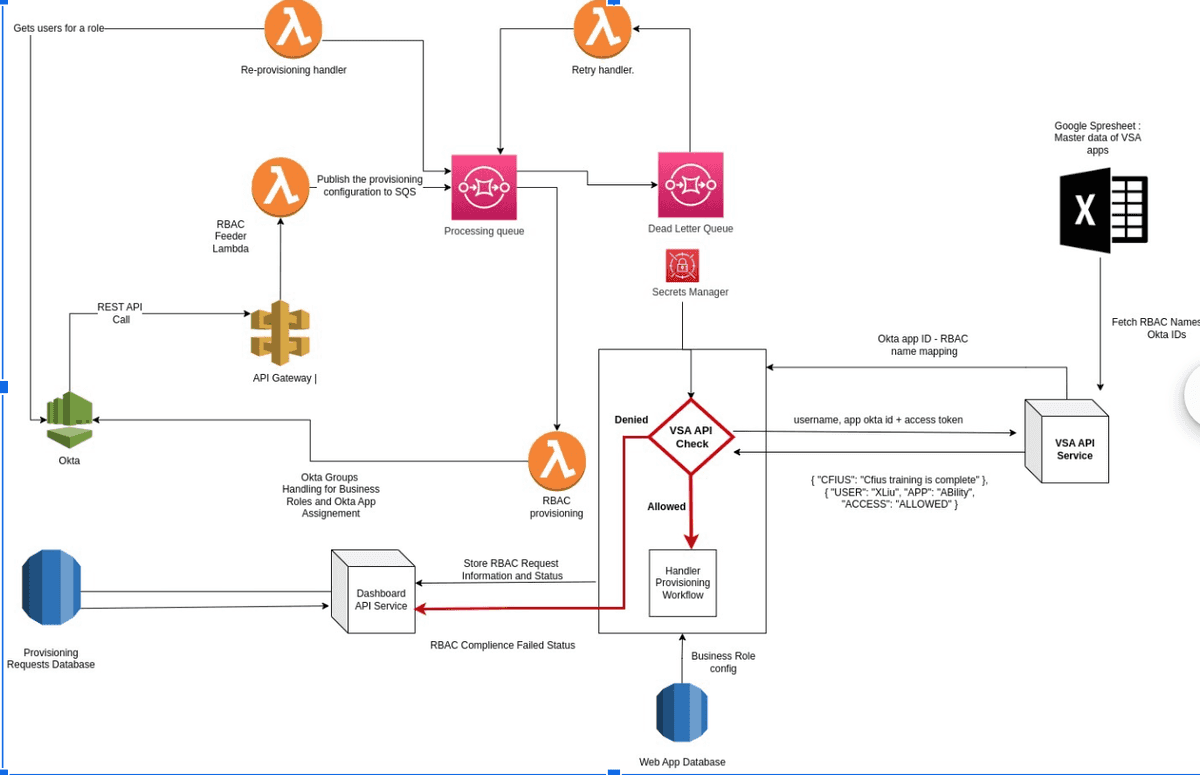

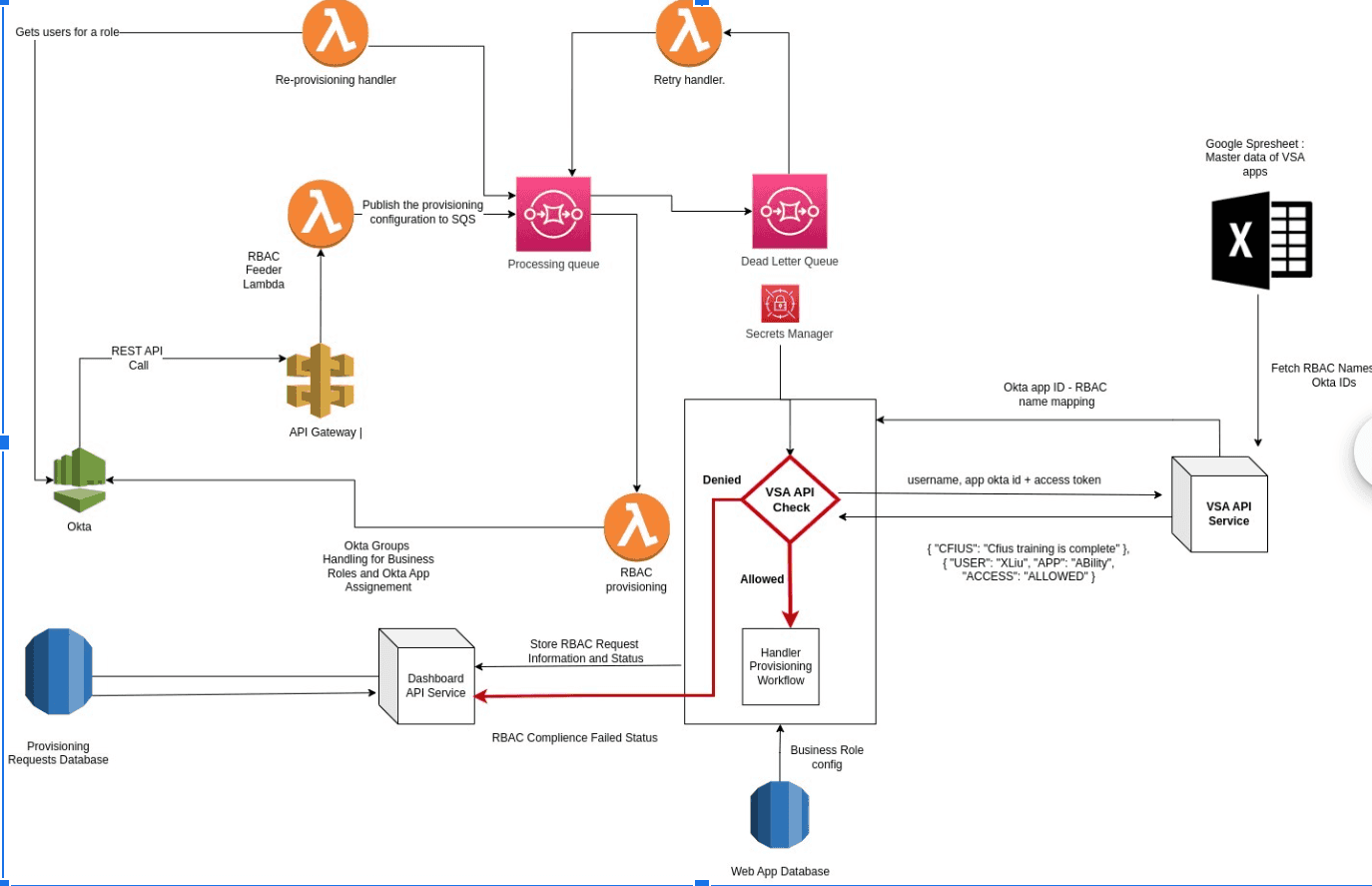

Solution Details

The RBAC solution automates user access management by integrating with Okta for identity management and ensuring compliance through various access validation mechanisms. The architecture leverages AWS services, REST APIs, and automated provisioning workflows to manage user roles, access approvals, and application assignments.

Key Components & Technologies:

1. Identity & Access Management

• Okta serves as the identity provider, handling user authentication and role assignments.
• Okta Groups are used for business role mapping and application access management.

2. Provisioning Workflow

• An API Gateway facilitates REST API calls between Okta, the RBAC provisioning system, and external applications.
• A Lambda function (RBAC Feeder) publishes provisioning configurations to an SQS queue, ensuring scalable and asynchronous processing.
• A re-provisioning handler retrieves user role updates, while a retry handler ensures failed requests are retried efficiently.
• A processing queue manages provisioning requests, with a Dead Letter Queue (DLQ) handling failed operations.

3. Validation & Compliance

• The VSA API Check validates access requests against predefined compliance rules.
• Secrets Manager securely manages authentication credentials.
• If access is denied, the system logs compliance failures and updates the Dashboard API Service.
• Approved requests trigger the Handler Provisioning Workflow, updating business role configurations in the Web App Database.

4. Business Role Management & Reporting

• A dashboard service tracks RBAC request status and compliance failures.
• A provisioning requests database logs user access requests for auditing.

This solution ensures a robust, scalable, and automated RBAC system, streamlining user access management while enforcing security and compliance.

Key Features of Solution

Role-Based Access Management

Assigns permissions based on predefined roles, ensuring users have appropriate access.

Granular Permission Control

Enables fine-grained access control to specific resources, APIs, and features within Vonage.

Approval Workflow for Access Requests

Requires manager or admin approval for assigning/revoking roles, ensuring security and compliance.

Audit Logging & Compliance

Tracks access activities, role changes, and approvals to meet compliance requirements and enable audit trails.

Periodic Access Reviews & Certification

Ensures ongoing compliance by requiring periodic reviews and re-certifications of user roles and access.

Integration with Vonage APIs & Services

Restricts or grants API access based on assigned roles, ensuring secure communication and resource usage.

Technical Details:

Our system consists of two main applications — RBAC Admin Management and RBAC Provisioning. The deeper dynamics are given as follows:

RBAC Admin Management

The main personas are Admin, Owner, Approver, Manager and Auditor, which are managed through RBAC Admin Management as follows:

1. Admin:

This persona allows admin to manage users and other admins, add and deactivate business role (BR), add and remove applications list and related permissions keys, and manage business role owners and approvers. A BR can only contain those applications that are incorporated by the RBAC handlers. Thereafter, owners can add applications to BR and update the configuration of the application and send it for approval. Owners are validated by OKTA APIs.

2. Owner:

This persona deals with users who are responsible for managing individual business roles. It provides functionality of managing the addition/removal of applications and their respective permissions in a particular BR. Once the owner makes the changes, they are shared with an approver for approval, and the owner can also send reminders to the approver for follow-up purposes.

3. Approver:

This persona checks the configuration of BR with the specific application configuration. An approver cannot make changes to BR; sh/e can only approve or reject changes.

4. Manager:

This persona allows a manager to look at tickets created for a role change, which applications have been granted/revoked as part of role change and the corresponding user details. S/he can also assign a role to a new or existing user.

4. Auditor:

This persona is implemented as a part of compliance requirements. An auditor can only track the progress of any application in terms of user access to the application, roles assigned to the users, and changes requested/approved for the business roles.

RBAC Provisioning

The process of user login in the RBAC system is managed by Okta SSO. For providing permissions inside the web application, we are using Okta groups. For the assignment of a particular okta-group, we have defined the level of access in the web application. Any user with a valid assignment of any of the personas’ respective okta-group will be able to login into the web application.

The RBAC provisioning application is created inside AWS Cloud. When there is a change in Business Role (BR) for a specific user or when it is set/reset, the application is triggered by a REST endpoint from Okta workflow. It then triggers an automation workflow where application specific handlers work on provisioning and setting up appropriate access for a user or change access to applications based on BR Mapping. The same automation workflow is applicable in the case of de-provisioning roles.

In the case of re-provisioning, when BR mapping changes then RBAC finds all the users in that BR and forces provisioning calls for the concerned users.

API Gateway allows only Okta server IP addresses to access the Gateway REST API.

Identity Provider (IDP) Integration

Leverages Okta, OAuth, or SAML for secure authentication and role-based access control.

JWT-Based Access Control

Implements JSON Web Tokens (JWT) to securely pass user roles and permissions within API requests.

Database-Driven Role & Permission Mapping

Stores roles, permissions, and user-role assignments in a structured RBAC database model for scalability.

API Gateway Role Enforcement

Uses API Gateway policies to validate roles and permissions before allowing access to backend services.

Results and Impact

Compliance

Ensures compliance with security regulations and reduces audit risks through periodic access certification.

Traceability

Enables tracking of role assignments, approvals, and their purposes for better access transparency.

Auto approval of JIRA access tickets:

Saves time by eliminating the need to chase managers for JIRA access approvals through auto-approval.

Reduced administrative work

Reduces administrative work with automated rules and triggers.

Technology Used
