Abstract

Implementing file downloads in React applications becomes complex when dealing with authenticated APIs. While basic downloads can be handled with simple anchor tags, secure file downloads through API endpoints require careful handling of authentication, binary data, and user feedback.

This article presents a TypeScript-based custom hook solution that encapsulates these complexities into a reusable implementation, providing a clean API for components while handling the technical challenges of secure file downloads.

Solution Details

Let's break down the solution into two main approaches:

1. Direct Link Download

The simplest approach using anchor tag:

<a href="https://www.some/url/to/file" target="__blank">Download</a>

This works for public files but fails for authenticated resources:

<!-- Won't work for protected files -->
<a href="https://api.example.com/protected-file">Download</a>

2. API-Based Solution

Our solution involves:

1. Calling authenticated API
2. Handling blob response
3. Creating temporary URL
4. Triggering download programmatically

Implementation Details

1. Project Setup

First, create a React project with TypeScript and install dependencies:

npx create-react-app react-download-file-axios --template typescript
npm i axios @types/axios luxon @types/react bootstrap react-bootstrap

2. Component Structure

Our implementation consists of three main parts:

1. Button Component (UI + Loading States)
2. Custom Download Hook (Core Logic)
3. Implementation Component (Usage Example)

Button Component

A reusable button handling loading states:

import React from "react";
import { Button as InternalButton, Spinner } from "react-bootstrap";

export enum ButtonState {
  Primary = "Primary",
  Loading = "Loading",
}

interface ButtonProps {
  readonly buttonState: ButtonState;
  readonly onClick: () => void;
  readonly label: string;
}

export const Button: React.FC<ButtonProps> = ({ buttonState, onClick, label }) => {
  const isLoading = buttonState === ButtonState.Loading;
  return (
    <div className="d-flex justify-content-center mt-5">
      <InternalButton onClick={onClick} variant="primary" size="sm">
        {isLoading && (
          <Spinner as="span" animation="border" size="sm" role="status" aria-hidden="true" />
        )}
        {!isLoading && label}
      </InternalButton>
    </div>
  );
};

Button Component accepts three props:

1. buttonState: Controls loading/normal state
2. onClick: Handler function for click events
3. label: Text displayed on the button

Custom Download Hook

The core logic for file downloads:

import { AxiosResponse } from "axios";
import { useRef, useState } from "react";

interface DownloadFileProps {
  readonly apiDefinition: () => Promise<AxiosResponse<Blob>>;
  readonly preDownloading: () => void;
  readonly postDownloading: () => void;
  readonly onError: () => void;
  readonly getFileName: () => string;
}

interface DownloadedFileInfo {
  readonly download: () => Promise<void>;
  readonly ref: React.MutableRefObject<HTMLAnchorElement | null>;
  readonly name: string | undefined;
  readonly url: string | undefined;
}

export const useDownloadFile = ({
  apiDefinition,
  preDownloading,
  postDownloading,
  onError,
  getFileName,
}: DownloadFileProps): DownloadedFileInfo => {
  const ref = useRef<HTMLAnchorElement | null>(null);
  const [url, setFileUrl] = useState<string>();
  const [name, setFileName] = useState<string>();

  const download = async () => {
    try {
      preDownloading();
      const { data } = await apiDefinition();
      const url = URL.createObjectURL(new Blob([data]));
      setFileUrl(url);
      setFileName(getFileName());
      ref.current?.click();
      postDownloading();
      URL.revokeObjectURL(url);
    } catch (error) {
      onError();
    }
  };

  return { download, ref, url, name };
};

Hook Parameters Explained

1. apiDefinition

   • Function containing API call
   • Returns Promise<AxiosResponse<Blob>>
   • Includes authentication headers

2. preDownloading

   • Executed before API call
   • Used for UI state changes
   • Example: Setting button to loading

3. postDownloading

   • Executed after successful download
   • Resets UI states
   • Example: Setting button back to primary

4. onError

   • Called when API fails
   • Handles error scenarios
   • Example: Shows error alert

5. getFileName

   • Generates download filename
   • Called after successful download
   • Example: Creates timestamp-based name

Download Function Flow

The download process follows these exact steps:

1. Invoke preDownloading function

   • Triggers loading state
   • Prepares UI for download

2. Call the API

   • Makes authenticated request
   • Handles blob response
   • Triggers onError if fails

3. Create URL from response

   • Creates blob URL
   • Stores in state
   • Used in <a href...>

4. Generate filename

   • Creates download filename
   • Stores in state
   • Used in download attribute

5. Click hidden anchor

   • Uses ref to access DOM
   • Triggers actual download

6. Post-download cleanup

   • Calls postDownloading
   • Resets UI state
   • Destroys generated URL

Implementation Component

Complete example showing hook usage:

import axios from "axios";
import React, { useState } from "react";
import { DateTime } from "luxon";
import { useDownloadFile } from "../../customHooks/useDownloadFile";
import { Button, ButtonState } from "../button";
import { Alert, Container } from "react-bootstrap";

export const DownloadSampleCsvFile: React.FC = () => {
  // State Management
  const [buttonState, setButtonState] = useState<ButtonState>(ButtonState.Primary);
  const [showAlert, setShowAlert] = useState<boolean>(false);

  // Handler Functions
  const preDownloading = () => setButtonState(ButtonState.Loading);
  const postDownloading = () => setButtonState(ButtonState.Primary);

  const onErrorDownloadFile = () => {
    setButtonState(ButtonState.Primary);
    setShowAlert(true);
    setTimeout(() => {
      setShowAlert(false);
    }, 3000);
  };

  const getFileName = () => {
    return DateTime.local().toISODate() + "_sample-file.csv";
  };

  const downloadSampleCsvFile = () => {
    return axios.get(
    "https://raw.githubusercontent.com/anubhav-goel/react-download-file-axios"
    + "/main/sampleFiles/csv-sample.csv",
      {
        responseType: "blob",
        headers: {
          Authorization: "Bearer <token>", // Add authentication token
        },
      },
    );
  };

  const { ref, url, download, name } = useDownloadFile({
    apiDefinition: downloadSampleCsvFile,
    preDownloading,
    postDownloading,
    onError: onErrorDownloadFile,
    getFileName,
  });

  return (
    <Container className="mt-5">
      <Alert variant="danger" show={showAlert}>
        Something went wrong. Please try again!
      </Alert>
      <a href={url} download={name} className="hidden" ref={ref} />
      <Button label="Download" buttonState={buttonState} onClick={download} />
    </Container>
  );
};

Component Breakdown

1. State Variables

   • buttonState: Manages button loading state
   • showAlert: Controls error alert visibility

2. Hook Functions

   • preDownloadFile: Sets loading state
   • postDownloadFile: Resets to primary state
   • onError: Shows error alert
   • apiDefinition: Makes authenticated API call
   • getFileName: Generates timestamp filename

3. JSX Elements

The component returns three main JSX elements:

1. Hidden Anchor Tag:

   <a href={url} download={name} className="hidden" ref={ref} />


   This hidden tag is not visible to the user. The download function internally clicks this button after the file is downloaded using refs.

2. Download Button:

   <Button label="Download" buttonState={buttonState} onClick={download} />


   The button which users click to initiate the download.





   Different Button States

3. Alert Component:

   <Alert variant="danger" show={showAlert}>
     Something went wrong. Please try again!
   </Alert>


   Responsible for showing error messages on the UI.

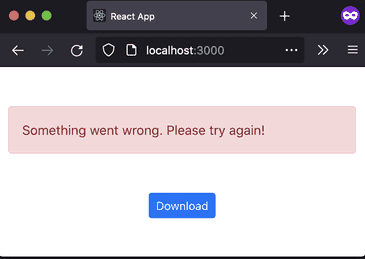

   Error State Display

App Integration

Finally, integrate into your App:

import React from "react";
import { DownloadSampleCsvFile } from "./components/downloadSampleCsvFile";

const App: React.FC = () => {
  return <DownloadSampleCsvFile />;
};

export default App;

Technology Used

Results and Benefits

Using this custom hook approach, we achieved the following benefits:

Reusable Download Logic

The custom hook encapsulates all download-related logic, making it easily reusable across different components.

Type-Safe Implementation

TypeScript integration ensures type safety and better IDE support.

Progress Tracking

Built-in progress tracking functionality provides users with feedback during downloads.

Best Practices and Recommendations

Implement comprehensive error handling with user feedback for failed downloads.

Always clean up URLs and resources after download completion to prevent memory leaks.

Utilize TypeScript interfaces and proper typing for better code maintainability.

Testing

1. Start the development server:

npm start
# or
yarn start

2. Test different scenarios:
   • Normal download flow
   • Loading state display
   • Error handling
   • Authentication
   • File naming

Conclusion

This implementation provides a reusable solution for handling authenticated file downloads in React applications. The custom hook pattern encapsulates complexity while maintaining type safety and proper resource management.

For complete source code, visit the GitHub repository.
